Model Name:

ISN-ST-08

Part number:

248650

Item Code:

TESEQ ISN-ST-08 248650 DB

Applications:

EMI EMC measures

Description:

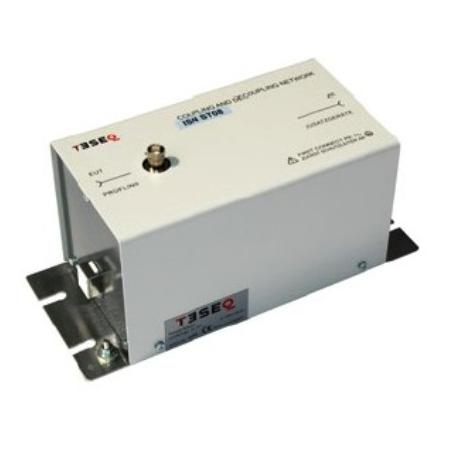

Network impedance stabilized suitable for shielded RJ 45 connectorized

General Features:

8 lines testable, 2 pairs, shielded and balanced
Meets CISPR 22 Ed 5.2
Can also be used for immunity testing according to IEC 61000-4-6

Specifications:

Line impedance 100 Ω
Max Voltage 100 Vac, 150 Vdc
Max current 1 A
Common mode impedance from 150 kHz side EUT a30 MHz: 150 Ω ± 20 Ω, 30 MHz to 230 MHz: 150 Ω +60 Ω / -45 Ω
Plug out / in with BNC RF signal RF V MAX <20 V
